Brook Fighting Board / Hitbox Cable Wiring Cable Arcade Stick Controller DIY

In short, the FB Cable is a complete 20-pin cable set + a 4-pin harness for the Touchpad, L3, and R3. Meanwhile, the Hitbox Cable is only a converter from a 5-pin joystick connection to buttons, because the default FB Cable only supports joystick (lever) movement. So, if you want to build a leverless controller, you need both cables so that all movement inputs use buttons.

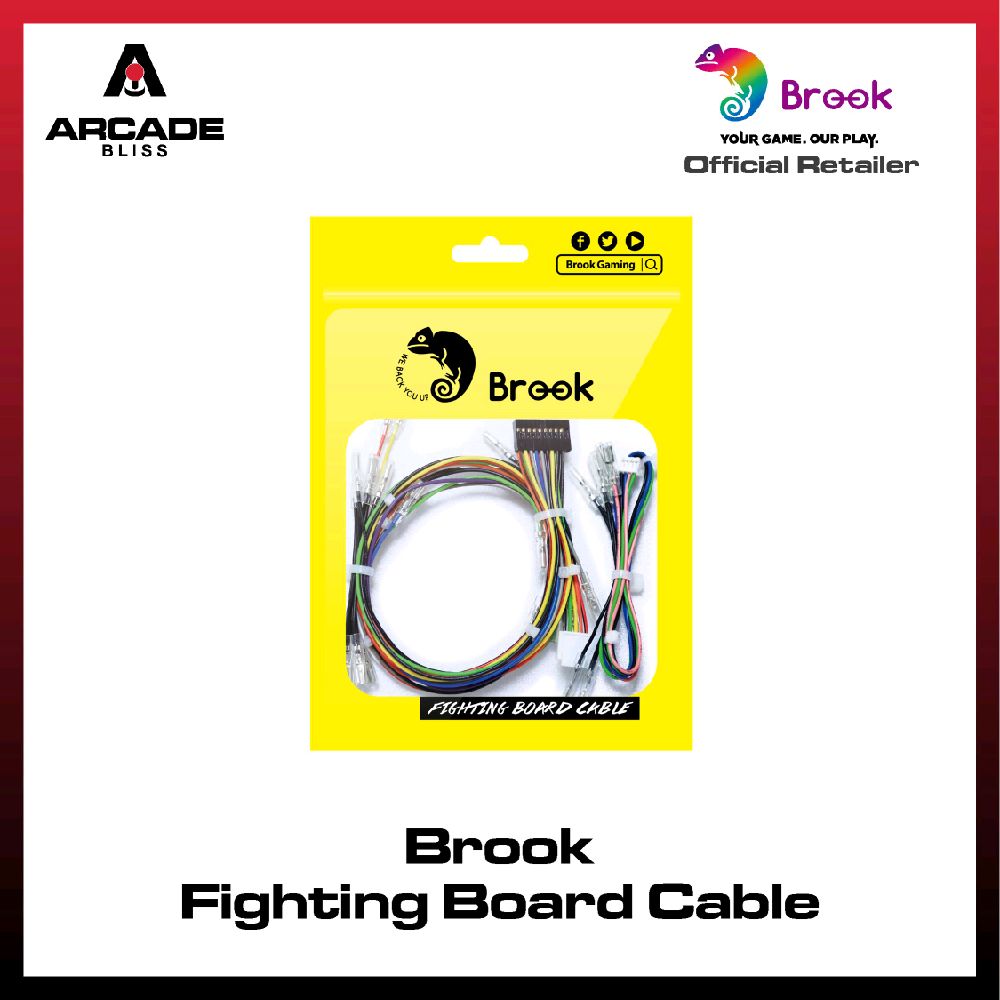

Fighting Board Cable / Hitbox Cable

The perfect companion for Brook Fighting Boards!

Compatible with Brook’s new Fighting Boards, except the Fighting Board PS3/PS4.

A complete cable set for the BROOK Fighting Board series. Just plug it in and you’re ready to go — no need for individual wiring anymore!

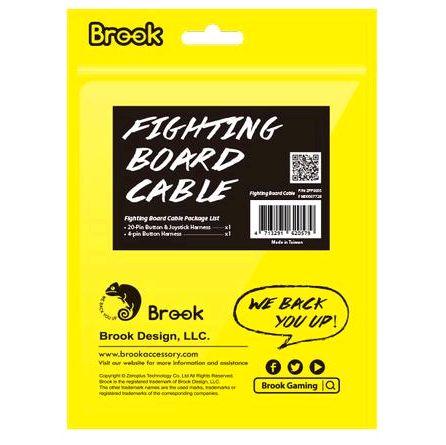

Fighting Board Cable Includes:

• 20-Pin Button & Joystick Harness

• 4-Pin Button Harness

Hitbox Cable Includes:

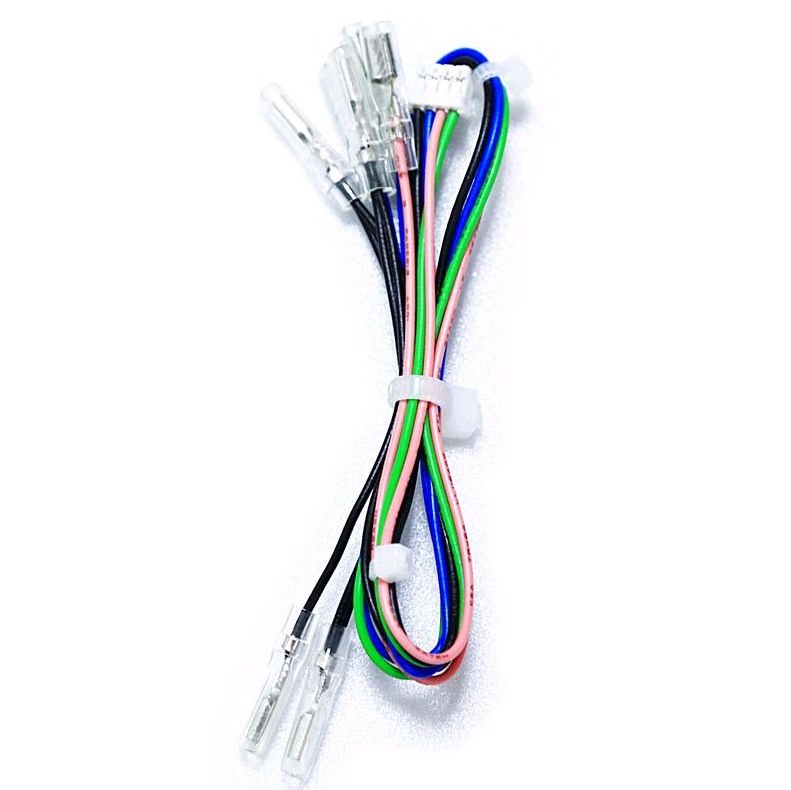

• Hitbox Cable

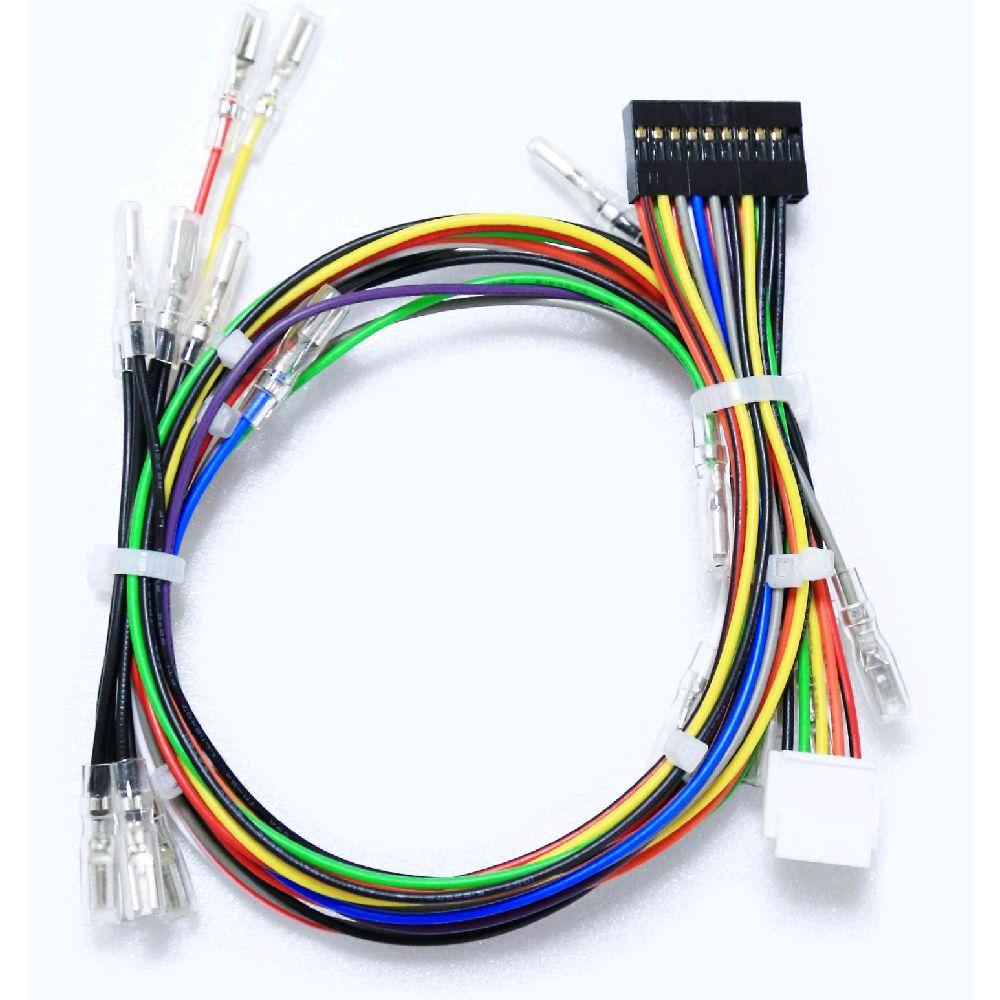

20-Pin Button & Joystick Harness

Action buttons and common option buttons are fully integrated. Compatible with mainstream buttons from Sanwa Denshi, Seimitsu, and GameFinger.

The 5-pin JST PH connector works with Sanwa JLF-series, Seimitsu LS-series, and Hori Hayabusa joysticks.

Building your own all-button fight stick has never been easier!

4-Pin Button Harness

The 4-pin connector on an all-button fight stick enables R3/L3 simulation. PS4 touchpad simulation is also available on fighting boards that support the PS4 touchpad function.

Easy and neat. Save your time.

Saves 15–30 minutes of installation time by allowing all buttons to be connected quickly to an all-button fight stick.
