Knee Lever - Neo Edition Crown Samducksa DRX Korean Lever Arcade Stick Handle Original Korea Capsule Top

100% Genuine Product

100% Original Guaranteed!

If the product is not genuine, we will provide a 100% refund.

Warranty Policy

Warranty does not cover user-caused damage, including incorrect installation or improper use. Warranty claims are accepted only for manufacturing defects or damage incurred during shipping.

Please provide a complete unboxing video for any warranty claim.

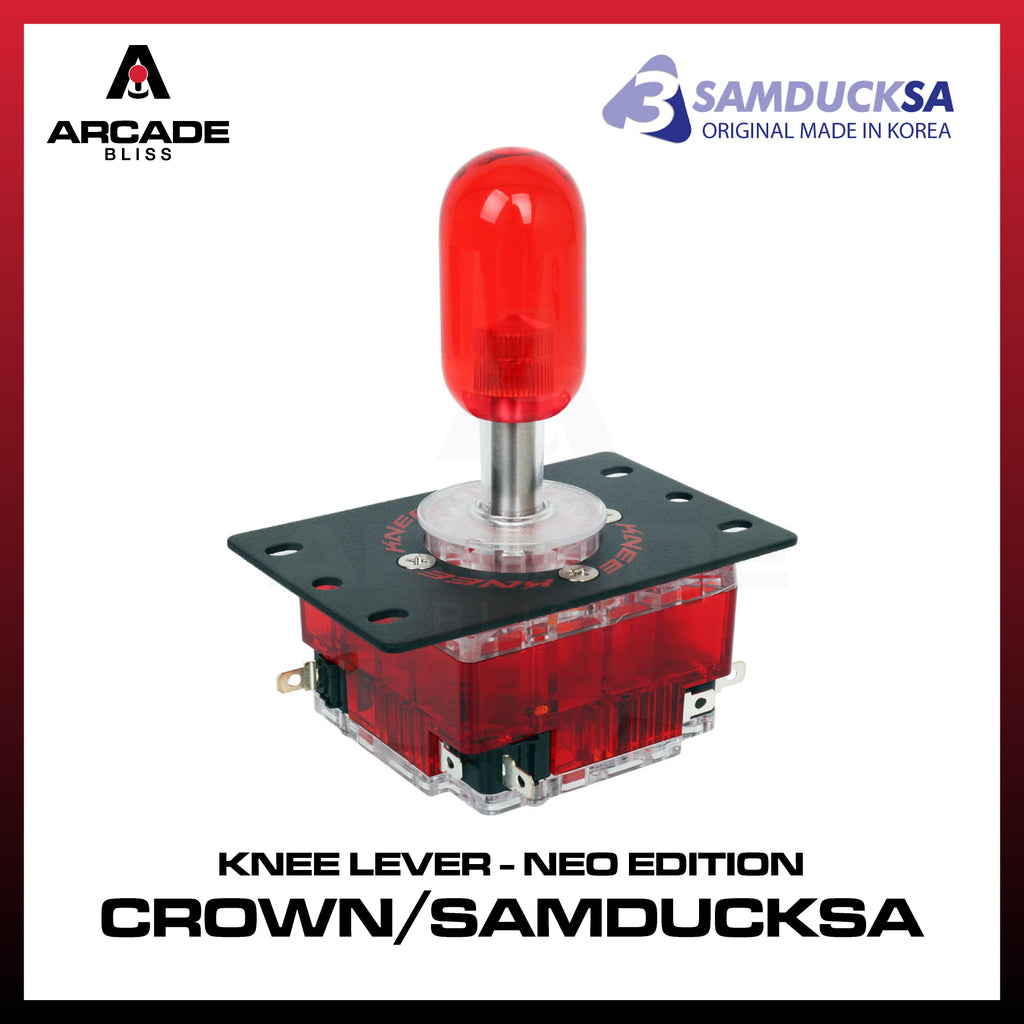

KNEE Lever NEO Specifications

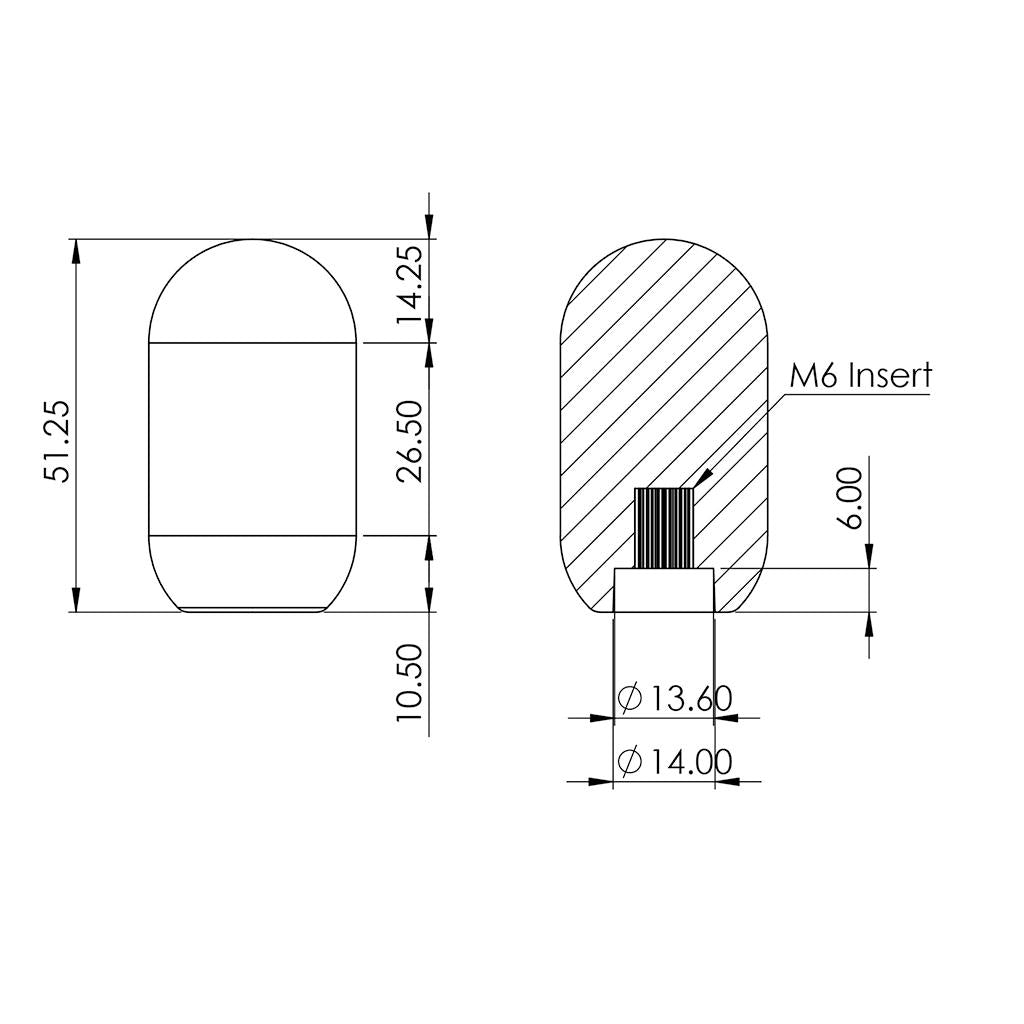

• Grip : Red transparent acrylic encapsulated handle
• Shaft : Stainless Steel
• Shaft Washer : Clear Polycarbonate
• Dust Cover : Clear Polycarbonate
• Mounting Bracket : 1.6T steel plate with coating and printed finish
• Tension Rubber Grommet : 30+ Specialized for knee players

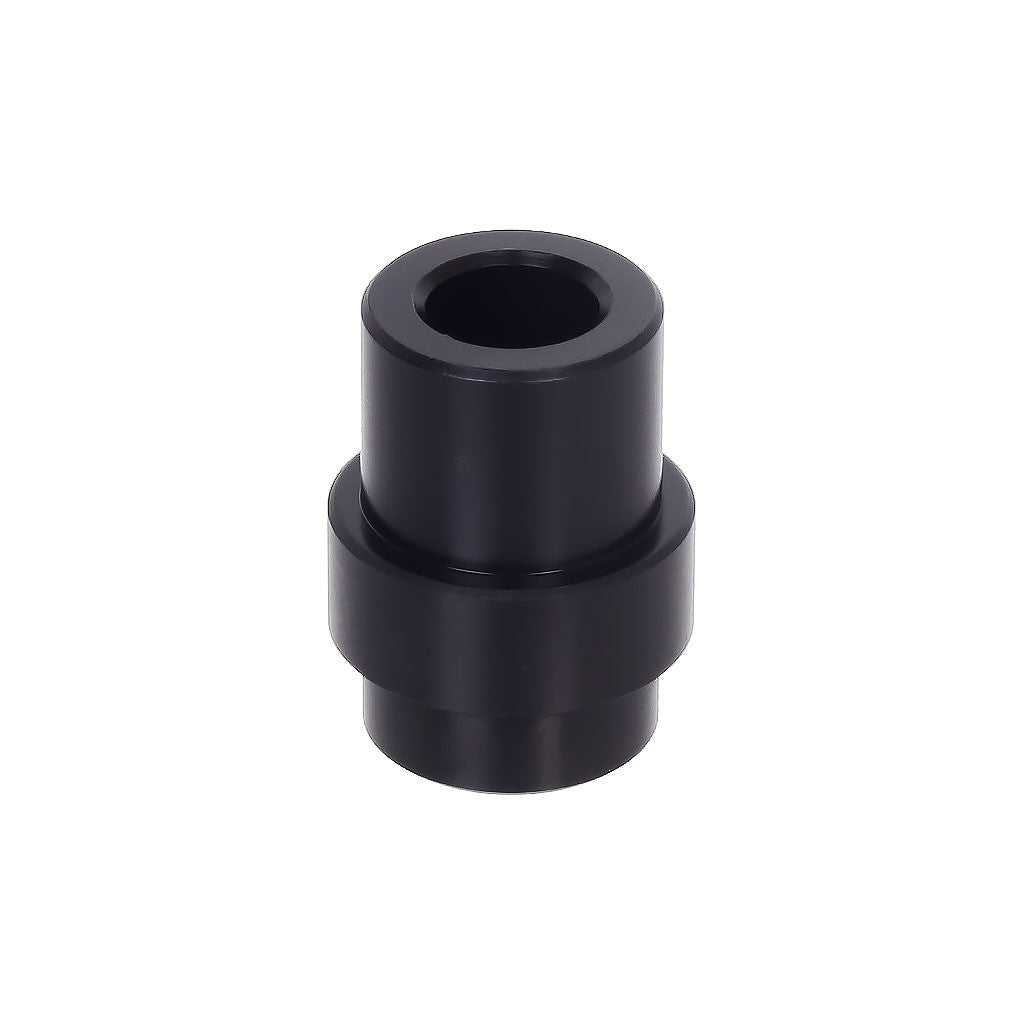

• Bobbin : Acetal
• Low-Collar Upper Housing : Clear Polycarbonate
• Bottom Housing : Red Clear Polycarbonate
• Actuator : 16.1mm Acetal

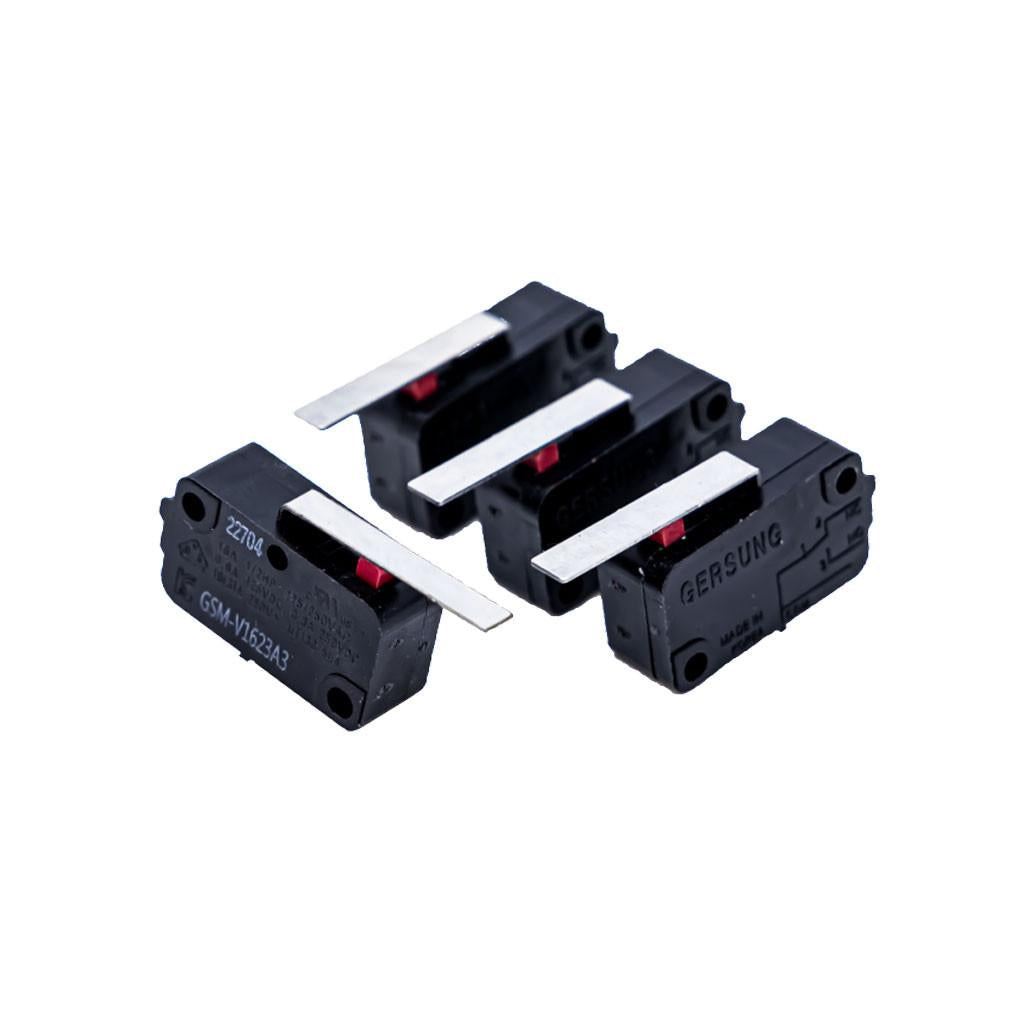

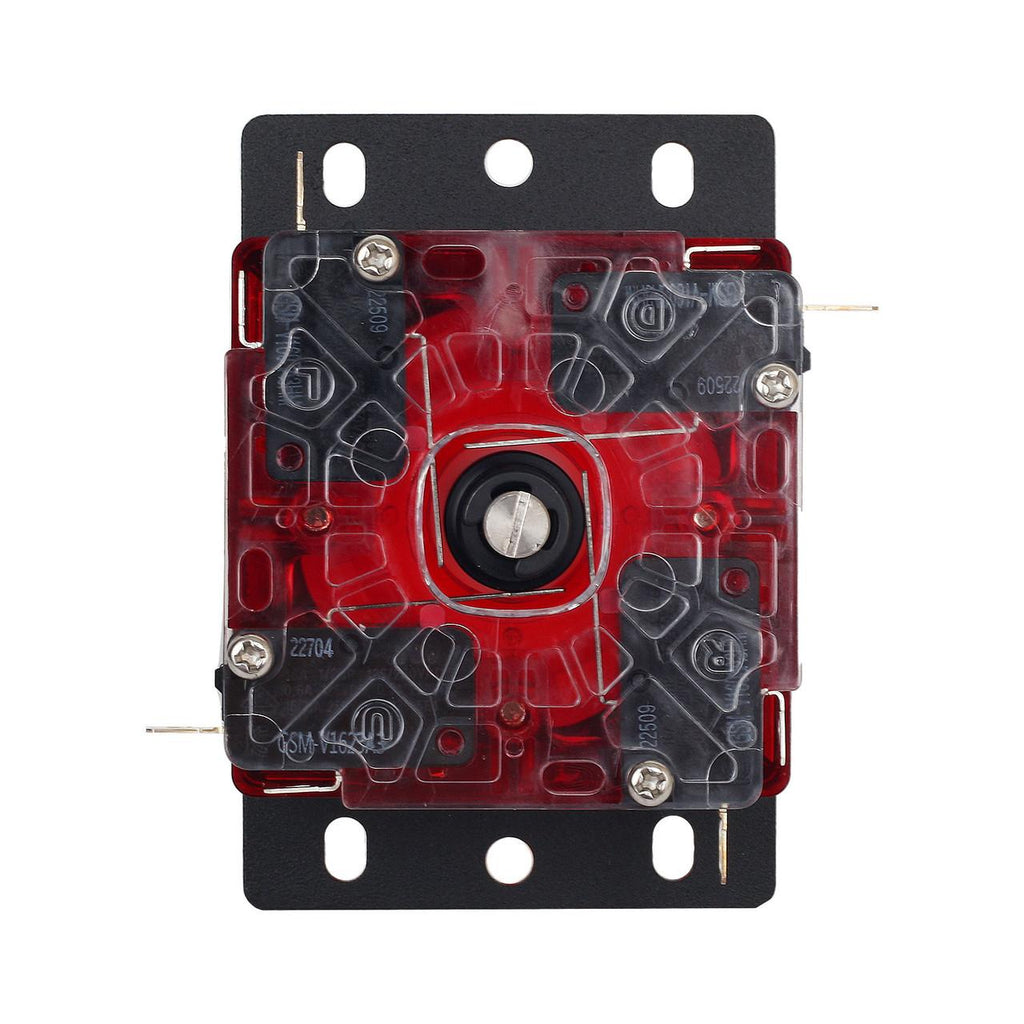

• Switches : 3 × Gersung A3KN Wide-Hinge Switches, 1 × Gersung A3 Standard-Hinge Switch
• Guide (Gate) : Circle-Square Clear Polycarbonate Guide

Installation Requirements

• Arcade stick with at least 65mm width, 97mm length, and 43mm height of internal mounting space.
• Arcade stick that uses a Sanwa JLF-standard mounting bracket.

Compatible with Sanwa Mount

The KNEE Lever NEO features a low-profile 35mm collar. Its multi-mounting plate includes mounting holes compatible with Sanwa-style fight sticks that provide sufficient internal clearance.

Tension via Rubber Grommet, not Metal Spring

Additionally, there is no tension spring. Instead most Korean levers use a rubber grommet placed in the housing. This surrounds the shaft, and a plastic or Delrin bobbin keeps shaft in place.

Tested Compatibility with Fightsticks

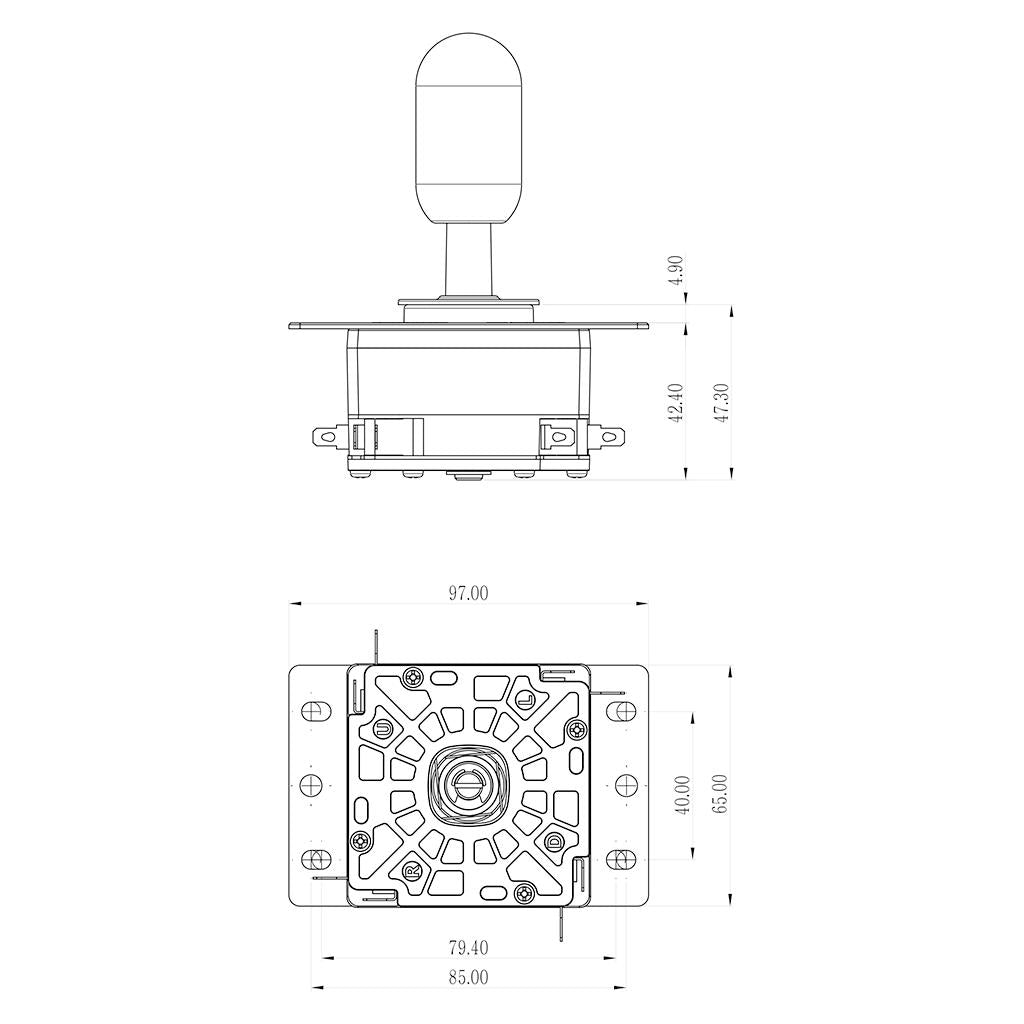

The KNEE lever dimensions are 95x83x118mm. (3.74 inches long, 3.26 inches deep and 4.64 inches high) with shaft installed. Without shaft and including the microswitches, the base is 38mm high. The following Fightsticks are compatible with the KNEE lever NEO. Its fit is similar to the Crown 303-FK. We will add to this list as we perform fit tests with other models in our possession.

• Hori Real Arcade Pro V Hayabusa (includes RAP 4 Kai, RAP 3-SA/SX as it uses similar housing)
• Hori RAP N
• Hori Edge (original and 2017 model)
• Hori VLX (all models)
• Razer Panthera (not Panthera EVO)
• MadCatz TE2+ (also compatible with original MCZ TE2 models)
• Qanba Q1 CUT
• Qanba Obsidian
• Nacon Daija
• Joytron EX Revolution V2
